$230.56

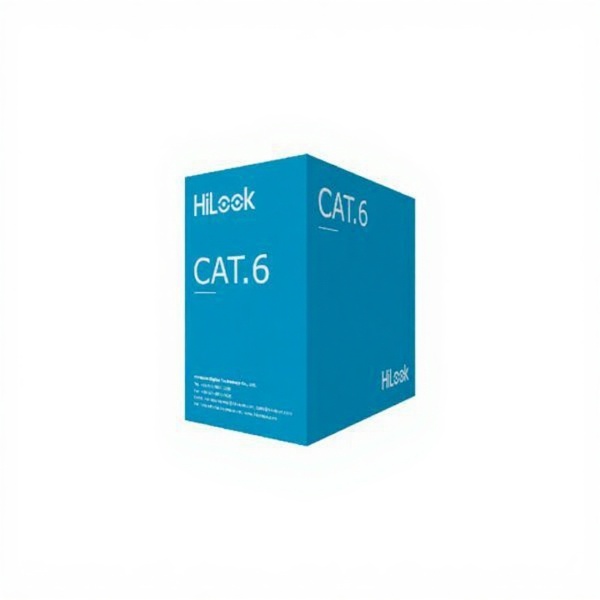

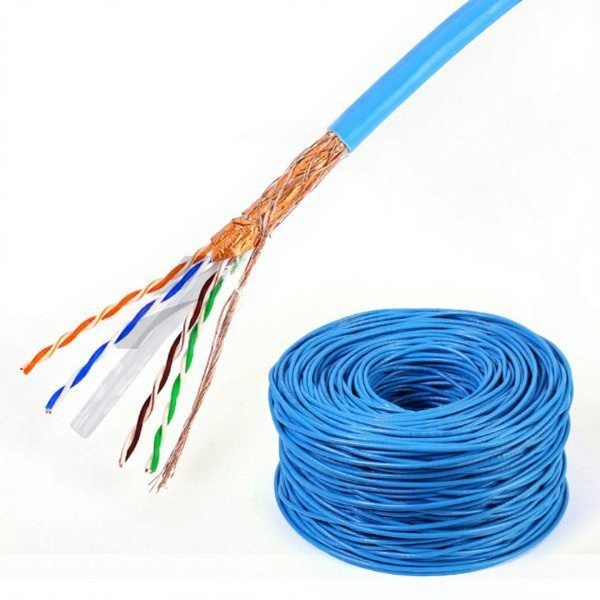

HiLook NC-6AU-W (White) CAT6 UTP Network Cable CCA – 305m Cable Drum
Features:-
- Full diameter 305 m CAT6 network cable
- Solid copper core with white sheath
- Core diameter: 1.05 mm
- Transmission distance up to 85 meters
- Quality verified by Fluke test Conductor
- Material: CCA(Copper content:27%)
- Nom.O.D.(Mm): 0.585 NC-6AU-W
- Core Color: 1 Blue & White/ Blue 2 Orange & White/ Orange 3 Green & White/ Green 4 Brown & White/ Brown
- Packing: Carton
- Carton Dimension: 41 x 41 x 24cm
- Packing Length: (305±1.5)m
- Rip-Cord: Yes
- Sheath Physical Properties: Before Aging Tensile Strength (Mpa) =13.5 Elongation(%) =150 Aging Period(?×hrs) 100?×24h×7d After Aging Tensile Strength (Mpa) =12.5, variance ratio:±25% Elongation(%) =125, variance ratio:±20% Cold bend(-20±2?×4h) 8×Cable O.D.,No visible cracks
- Electrical Characteristics (21?): 1.0-100.0MHz Impedance(O) 100±15 100 – 250MHz Impedance(O) 100±25 1.0-100.0MHz Delay Shew (ns/100m) =45 DC ResistanceO/100m) max 12 DC Conductor Resistance Unbalance(%) max 2
Want to buy more than items available? No problem at all!
Contact us and we will get in touch with you regarding separate delivery/ shipping information or even for pick-up after confirming the availability with you.
Shipping and Pick-up Options:
Pick-up
Item can be picked up from our store located in 121 Great South Road, Papakura, Auckland. Please contact us to arrange timings for collection of the goods directly from our store.
Note: Please always call or text first (@+64 21 262 7546) to ensure that someone is in the workshop (store is not staffed 8 hours a day)
Description
HiLook NC-6AU-W (White) CAT6 UTP Network Cable CCA – 305m Cable Drum
Features:-
- Full diameter 305 m CAT6 network cable
- Solid copper core with white sheath
- Core diameter: 1.05 mm
- Transmission distance up to 85 meters
- Quality verified by Fluke test Conductor
- Material: CCA(Copper content:27%)
- Nom.O.D.(Mm): 0.585 NC-6AU-W
- Core Color: 1 Blue & White/ Blue 2 Orange & White/ Orange 3 Green & White/ Green 4 Brown & White/ Brown
- Packing: Carton
- Carton Dimension: 41 x 41 x 24cm
- Packing Length: (305±1.5)m
- Rip-Cord: Yes
- Sheath Physical Properties: Before Aging Tensile Strength (Mpa) =13.5 Elongation(%) =150 Aging Period(?×hrs) 100?×24h×7d After Aging Tensile Strength (Mpa) =12.5, variance ratio:±25% Elongation(%) =125, variance ratio:±20% Cold bend(-20±2?×4h) 8×Cable O.D.,No visible cracks
- Electrical Characteristics (21?): 1.0-100.0MHz Impedance(O) 100±15 100 – 250MHz Impedance(O) 100±25 1.0-100.0MHz Delay Shew (ns/100m) =45 DC ResistanceO/100m) max 12 DC Conductor Resistance Unbalance(%) max 2
Want to buy more than items available? No problem at all!
Contact us and we will get in touch with you regarding separate delivery/ shipping information or even for pick-up after confirming the availability with you.
Shipping and Pick-up Options:
Pick-up
Item can be picked up from our store located in 121 Great South Road, Papakura, Auckland. Please contact us to arrange timings for collection of the goods directly from our store.
Note: Please always call or text first (@+64 21 262 7546) to ensure that someone is in the workshop (store is not staffed 8 hours a day)
Delivery:
Shipping is available.
Deliveries times may vary, but are generally carried out within 5-10 working days from purchase.
Please send us an email or a text message for any kind of enquiry regarding delivery/ shipping charges, product availability/ issue or even placing bulk order.
mailto:aone2021@outlook.co.nz
+64 21 262 7546
Don’t forget to checkout “Seller’s other listings”
